8×8 Scan Matrix LED

LED-matrix connections

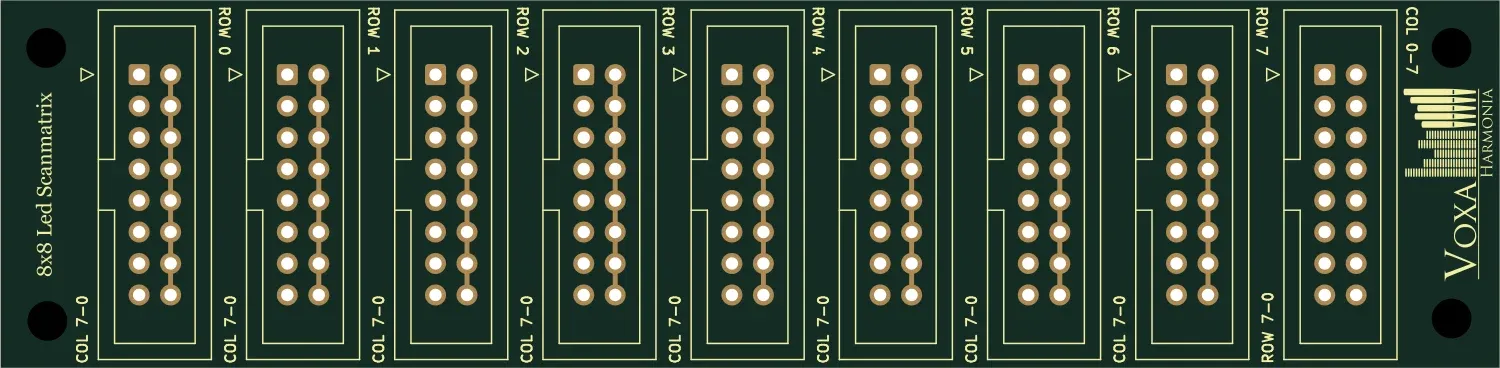

An 8×8 row–column connection board for an LED matrix. IDC connectors provide organised wiring for 64 matrix positions.

• Eight rows and eight columns.
• IDC 2×8 connectors for the matrix and common bus.
• For an external LED-matrix driver, such as the LED ports of Stop LED Expression 192.
